Strobe IP 1000SM

• High-power up to 1000W, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use,extremely bright color mixing strobe light
• 14 controllable sections of RGB color mixing LEDs and 28 sections of control of the white strobe LEDs,pixel mappable face,perfect strobe curve
• Forground color and background color can be changed to create different effects

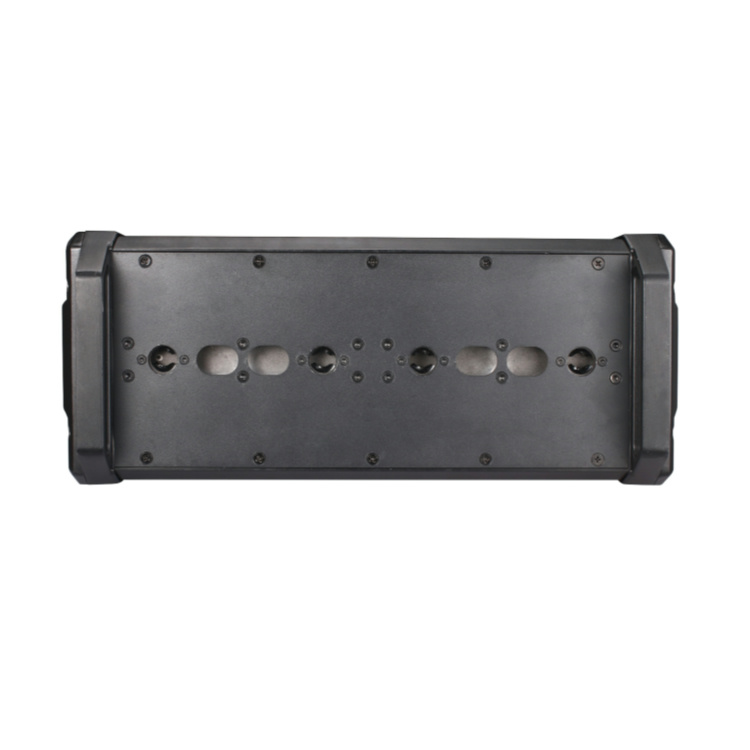

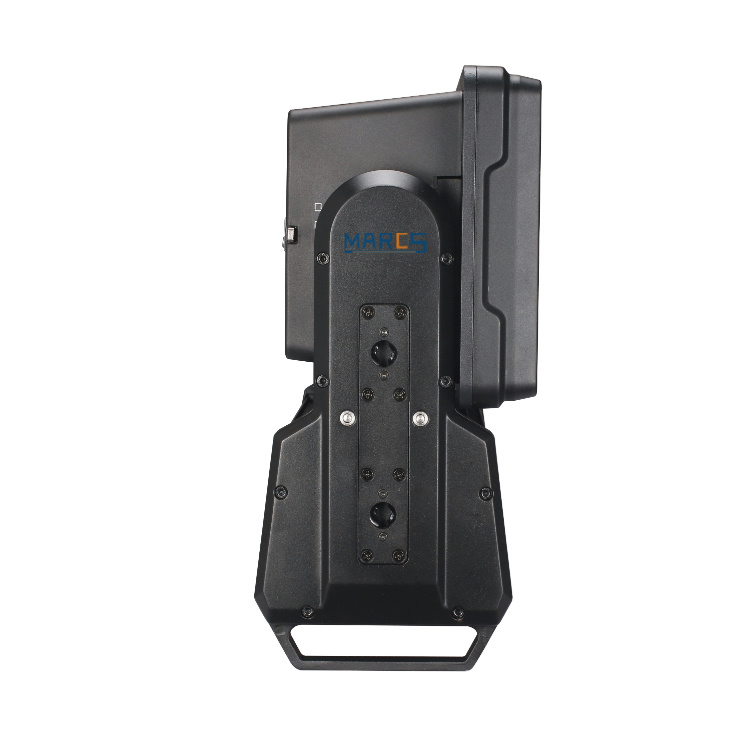

• Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations
• Multitude of built-in effect macros with control parameters
• DMX, ArtNet and sACN control capability
• 16 bit dimming control for smooth, perfect fades
• Easy to use OLED display
• Built-in alignment pins to ensure perfectly straight linear arrays
• Exactly the same DMX protocols as the original one

Optics System

• LED type：84x10W cool white LED,（Beam ）

896×0.5W RGB LED, （Pixel ）

• Optics lens：45mm high brightness PMMA lens
• Beam angle：Beam 110°

Pixel 120°

• Life Span：50000H

Movement

• Tilt movement：
• 16bit fine
• Smooth and accurate positioning
• Tilt:180°
• Tilt movement with error correction function

Color

• Uniform RGB mixing color
• LED pixel control to create a more gorgeous chasing effect
• Static color setting

Specification

• 7DMX channel modes：8/11/13/24/30CH/74/97CH
• 4 control modes:DMX512、ArtNet、sCAN、Maser-Slave，
• DMX function：Tilt、Dimming、Strobe、RGB、Macro colour、colour step、colour fade、Rainbow、Auto-program、Auto speed、dimming curve、function setting。
• Stand-alone mode:Tilt、Colour step、colour shade、Auto、Slave、Macro colour，Static colour setting、Rainbow、Auto program
• Strobe effect: 0-20HZstrobe、Ramp up and down strobe、Ramp up strobe、Ramp down strobe、Random strobe, 5s-1s break strobe。
• Dimming:0-100% 16bit dimming
• Each LED can be controlled separately
• Dimming way：4 dimming speed

Display

• 4-inch TFT display screen
• 4 touch buttons
• the key lock can be set to prevent incorrect operation
• The display screen can  reversed by 180°，which is suitable for installation in different positions

Software

• Software Upgrade：Upgrade with DMX  signal cable
• It Shows the usage time of the fixture to covicustomers to understand the use of the fixture in a timely manner
• LEDRefresh rate：800Hz/1200Hz/2000Hz/3600Hz /15000Hz optional
• 4 kinds of curve dimming：Linear Dimming、Exponential Dimming、
  Logarithm Dimming、S-Curve Dimming

Other functions

• Setting and  Addressing：RDM
• LED temperature detection system to protect the service life of LED chip
• Fan heat dissipation (the fan speed changes as per the temperature change)
• Fan mode: Silence, automatic and high -speed mode switching

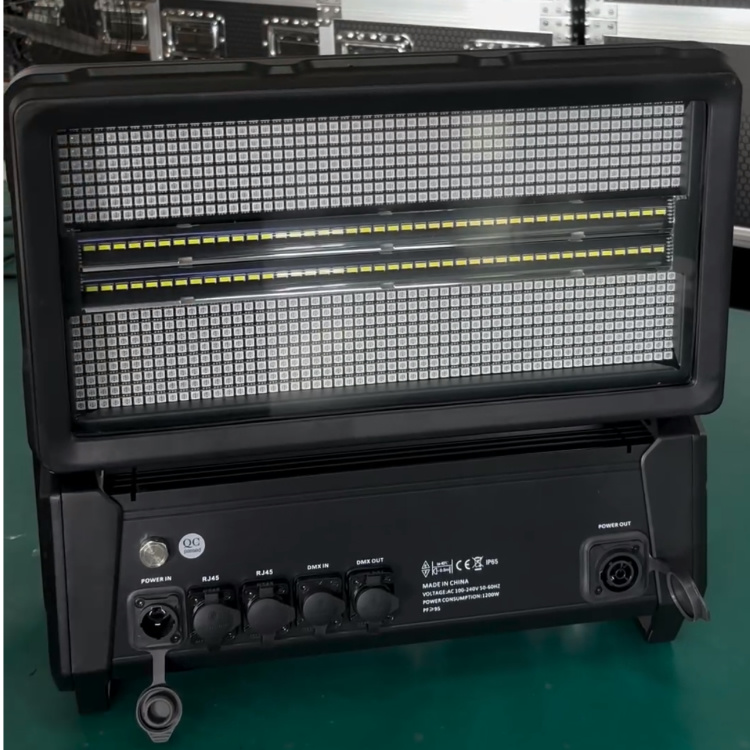

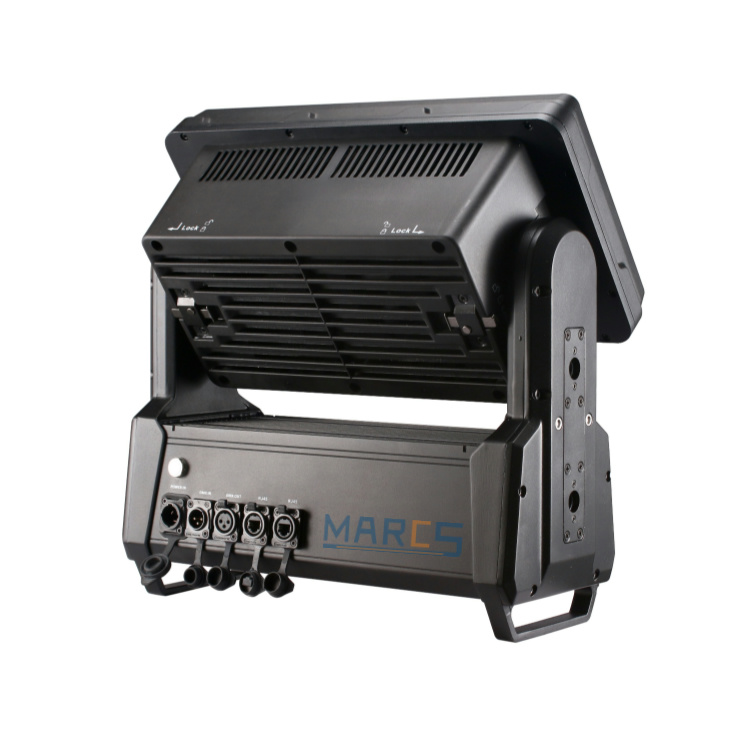

Power /DMX connection

• Power connection：waterproof Seetronic TureCon IN (SAC3MPX) and Out (SAC3FPX)
• DMX  input:waterproof Seetronic 3-pin XLR Seetronic (J3F2C-W)
• DMX  output：waterproof Seetronic 3-pin XLR Seetronic (K3F2C-W)
• RJ45 Input&output

Electric parameter

• AC100-240V 50/60HZ
• Power consumption：1000W(strobe)

Protection class

• Shell material：Dis-cast aluminum
• Waterproof class：IP65

Working environment

• Working temperature：-20°C～+40°C

Dimension and weight

• Packing dimension (carton)：515x295x495mm
• Net weight：16.5KG
• Gross weight：18.7KG

Certification：

• CE,ROHS
